| PORTS | 8*PON interface, SC single-mode/single-fibre,1.25Gbps; 4*10/100/1000Mbps RJ45 2*SFP |
| Wavelength | Tx 1310nm, Rx 1490nm |
| Farthest distance | 20km between OLT and ONU |
| Standard | IEEE802.3ah IEEE 802.1D, Spanning Tree IEEE 802.1Q, VLAN IEEE 802.1w, RSTP IEEE 802.3ad, LACP Ethernet – II, Ethernet-SNAP IEEE 802.3ad VLAN Stacking( Q in Q) |
| VLNA | 4K VLAN table items VLAN based on port, MAC, protocol and IP subnet. port QinQ and flexible QinQ (StackVLAN) VLAN Swap and VLAN Remark GVRP t the addition, deletion and replacement of VLAN based on ONU business flow. |
| Management maintenance | Support for command line interface (CLI), Console port, Telnet and WEB configuration management. IGMPv1/v2/v3.STP/RSTP/MSTP.ACL. QoS.SNMPv1/v2/v3 |
| power supply | AC:90~260V,47~63Hz DC:-36V~-72V ;Optional dual power supply |
| Power consumption | ≤25W |
| Operating condition | Operating temp: -5~+55℃ Operating humidity:10~90%(non-condensed) |
| Storing condition | Storing temp: -30~+60℃,Storing humidity:10~90%(non-condensed) |

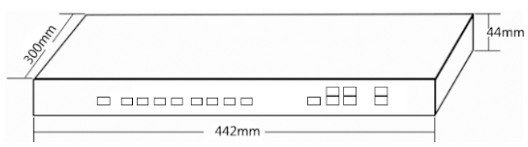

| Dimension | 442mm*300mm*44mm(length*width*height) |
| Net weight | 1.84Kg |
Feature:
l Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
l China Telecom / China Unicom GEPON interoperability standards
l Support for the transmission distance of 20Km on a single root fiber
l Supporting 64 terminals of passive optical splitter on single optical fiber
l Support 128Bits up and down three churning encryption functions
l Support ONU terminal legitimacy authentication, illegal ONU registration events reported
l DBA algorithm supporting dynamic bandwidth allocation, granularity 64Kbit/s
l Support standard OAM and extended OAM management functions
l Support ONU software batch upgrade, timing upgrade, real-time upgrade support PON port luminous power, accept optical power detection
l Support for command line interface (CLI), Console port, Telnet and WEB configuration management.
l Support EAPS and GERP enhanced Ethernet ring network protocol (loop healing time <50ms) support.

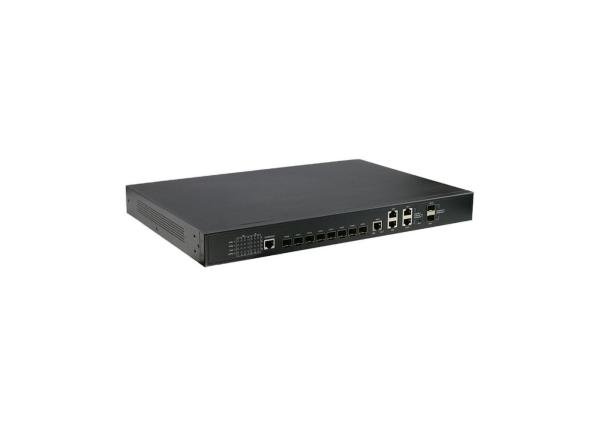

Physical Pic Reference :

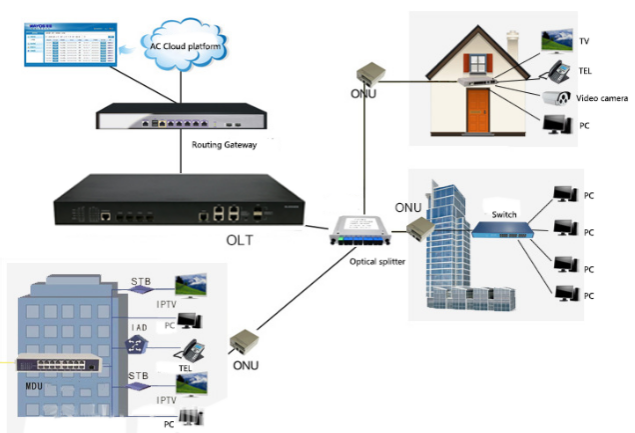

Application
